Settings Menu - Graphics

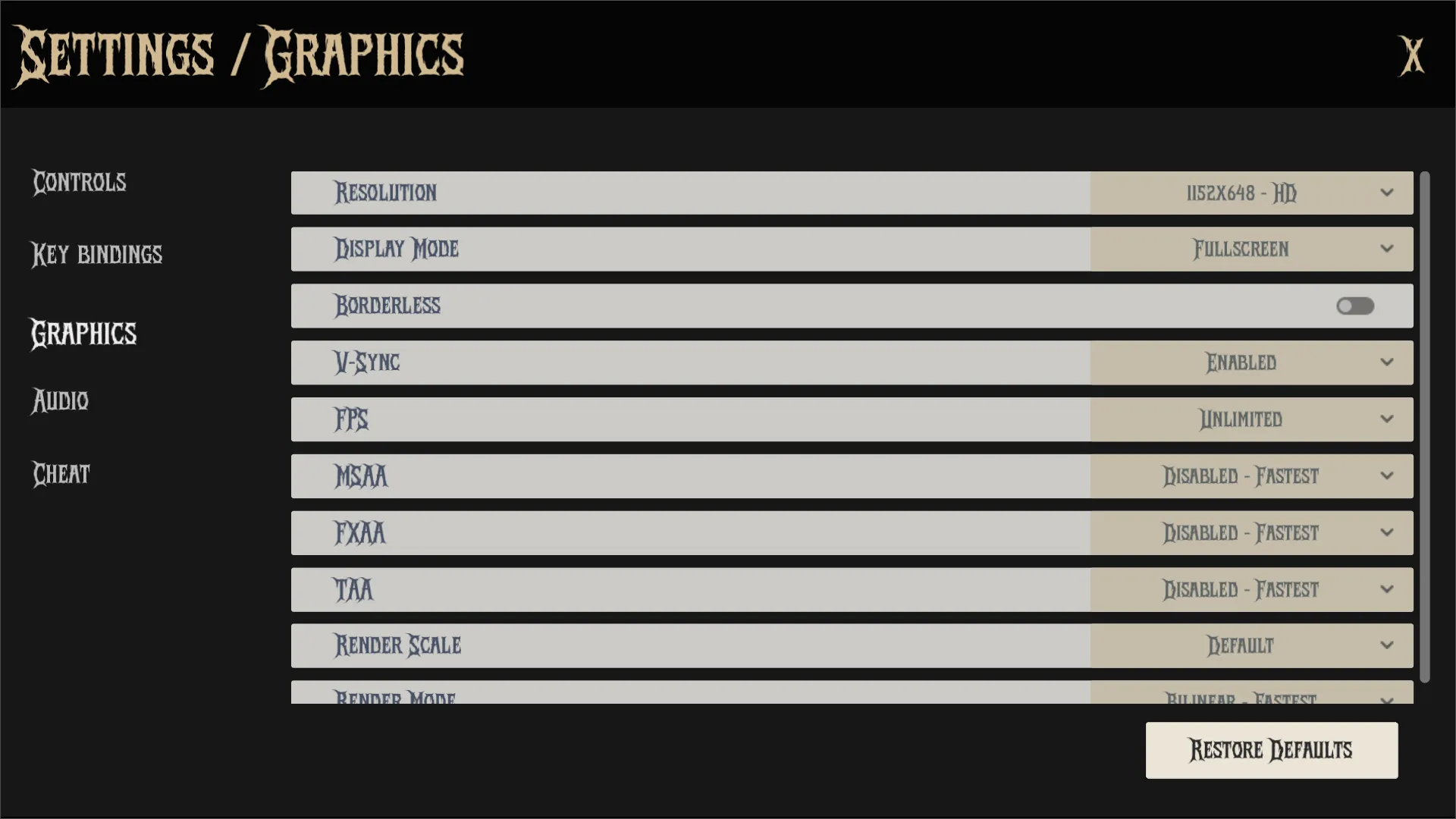

The GraphicsSettingsPanel is a Control node that provides an interface for adjusting graphics settings in the game.

It allows users to modify various graphics options such as resolution, display mode, V-Sync, anti-aliasing methods, and render scale. The settings are saved and loaded using the SettingsManager, ensuring that the user’s preferences persist between game sessions.

Properties

Constants

Name	Type	Description
RESOLUTIONS	Dictionary[String, Vector2i]	Available screen resolutions with labels
DISPLAY_MODES	Dictionary[String, WindowMode]	Window display modes (Windowed, Fullscreen, etc.)
V_SYNC	Dictionary[String, VSyncMode]	Vertical synchronization options
FPS	Dictionary[String, int]	Framerate limit options
MSAA	Dictionary[String, MSAA]	Multisample anti-aliasing quality levels
FXAA	Dictionary[String, ScreenSpaceAA]	Fast approximate anti-aliasing options
TAA	Dictionary[String, bool]	Temporal anti-aliasing toggle
RENDER_SCALE	Dictionary[String, float]	3D rendering resolution scaling factors
RENDER_MODE	Dictionary[String, Scaling3DMode]	3D scaling modes (FSR, Bilinear)

Configuration

Type	Name	Description
String	config_path	Path to configuration file (“user://settings.cfg”)
String	config_name	Section name for graphics settings (“graphics”)
Dictionary	graphics_settings	Stores current graphics settings

Node References

Type	Name	Description
ContentItemDropdown	resolution	Resolution selection dropdown
ContentItemDropdown	display_mode	Window mode dropdown
SettingsCheckButton	borderless	Borderless window toggle
ContentItemDropdown	v_sync	VSync mode dropdown
ContentItemDropdown	fps	FPS limit dropdown
ContentItemDropdown	msaa	MSAA quality dropdown
ContentItemDropdown	fxaa	FXAA toggle dropdown
ContentItemDropdown	taa	TAA toggle
ContentItemDropdown	render_scale	Render scale quality dropdown
ContentItemDropdown	render_mode	3D scaling mode dropdown

Implementation

The _ready() function initializes the graphics settings panel by calling _load_graphics_items() to populate the dropdowns and checkboxes with available options. It also sets the initial values for the graphics settings based on the current configuration.

func _ready() -> void:
  _load_graphics_items()

The _load_graphics_settings() function loads the graphics settings from the configuration file using the SettingsManager. It retrieves the current graphics settings and updates the dropdowns and checkboxes accordingly.

func _load_graphics_settings() -> void:
  SettingsManager.load_settings(get_viewport(),get_window(),config_name)

  _set_graphics_values()

The _save_graphics_settings() function saves the current graphics settings to the configuration file. It iterates through the graphics_settings dictionary and updates the values in the configuration file.

func _save_graphics_settings() -> void:
  var config = ConfigFile.new()
  config.load(config_path) # Load existing settings

  for graphics_setting: String in graphics_settings:
    config.set_value(config_name, graphics_setting, graphics_settings[graphics_setting])

  config.save(config_path)

The following functions are connected to the respective signals from the UI elements. They handle the changes made by the user and update the graphics settings accordingly.

func _set_resolution(index: int) -> void:
  var value: Vector2i = RESOLUTIONS.values()[index]
  DisplayServer.window_set_size(value)
  DisplayUtils.center_window(get_window())

  resolution.options.selected = index
  graphics_settings["resolution"] = value

  _save_graphics_settings()

func _set_display_mode(index: int) -> void:
  var value: DisplayServer.WindowMode = DISPLAY_MODES.values()[index]
  DisplayServer.window_set_mode(value)

  display_mode.options.selected = index
  graphics_settings["display_mode"] = value

  _save_graphics_settings()

func _set_borderless(value: bool) -> void:
  DisplayServer.window_set_flag(DisplayServer.WINDOW_FLAG_BORDERLESS, value)
  DisplayServer.window_set_size(graphics_settings["resolution"])
  DisplayUtils.center_window(get_window())

  graphics_settings["borderless"] = value

  _save_graphics_settings()

## Vsync is enabled by default.
## Vertical synchronization locks framerate and makes screen tearing not visible
## at the cost of higher input latency and stuttering when the framerate target
## is not met.Adaptive V-Sync automatically disables V-Sync when the framerate
## target is not met, and enables V-Sync otherwise. This prevents suttering and
## reduces input latency when the framerate target is not met, at the cost of
## visible tearing.
func _set_vsync(index: int) -> void:
  var value: DisplayServer.VSyncMode = V_SYNC.values()[index]
  DisplayServer.window_set_vsync_mode(value)

  v_sync.options.selected = index
  graphics_settings["v_sync"] = value

  _save_graphics_settings()

## The rendering FPS affects the appearance of TAA, as higher framerates allow
## it to converge faster. On high refresh rate monitors, TAA ghosting issues
## may appear less noticeable as a result (if the GPU can keep up).
func _set_fps(index: int) -> void:
  var value: int = FPS.values()[index]
  Engine.set_max_fps(value)

  fps.options.selected = index
  graphics_settings["fps"] = value

  _save_graphics_settings()

## Multi-sample anti-aliasing. High quality, but slow. It also does not smooth
## out the edges of transparent (alpha scissor) textures.
func _set_msaa(index: int) -> void:
  var value: int = MSAA.values()[index]
  get_viewport().msaa_3d = value

  msaa.options.selected = index
  graphics_settings["msaa"] = value

  _save_graphics_settings()

## Fast approximate anti-aliasing. Much faster than MSAA (and works on alpha
## scissor edges), but blurs the whole scene rendering slightly.
func _set_fxaa(index: int) -> void:
  var value: int = FXAA.values()[index]
  get_viewport().screen_space_aa = value

  fxaa.options.selected = index
  graphics_settings["fxaa"] = value

  _save_graphics_settings()

## Temporal antialiasing. Smooths out everything including specular aliasing,
## but can introduce ghosting artifacts and blurring in motion.
## Moderate performance cost.
func _set_taa(index: int) -> void:
  var value: int = TAA.values()[index]
  get_viewport().use_taa = value

  taa.options.selected = index
  graphics_settings["taa"] = value

  _save_graphics_settings()

func _set_render_scale(index: int) -> void:
  var value: float = RENDER_SCALE.values()[index]
  get_viewport().scaling_3d_scale = value

  render_scale.options.selected = index
  graphics_settings["render_scale"] = value

  _save_graphics_settings()

func _set_render_mode(index: int) -> void:
  var value: int = RENDER_MODE.values()[index]
  get_viewport().scaling_3d_mode = value

  render_mode.options.selected = index
  graphics_settings["render_mode"] = value

  _save_graphics_settings()

load_graphics_items() is responsible for populating the dropdowns and checkboxes with available options. It clears the existing options and adds new ones based on the defined constants.

func _load_graphics_items() -> void:
  resolution.options.clear()
  for res_text in RESOLUTIONS:
    resolution.options.add_item(res_text)

  display_mode.options.clear()
  for dis_text in DISPLAY_MODES:
    display_mode.options.add_item(dis_text)

  v_sync.options.clear()
  for v_text in V_SYNC:
    v_sync.options.add_item(v_text)

  fps.options.clear()
  for fps_text in FPS:
    fps.options.add_item(fps_text)

  msaa.options.clear()
  for msaa_text in MSAA:
    msaa.options.add_item(msaa_text)

  fxaa.options.clear()
  for fxaa_text in FXAA:
    fxaa.options.add_item(fxaa_text)

  taa.options.clear()
  for taa_text in TAA:
    taa.options.add_item(taa_text)

  render_scale.options.clear()
  for scale_text in RENDER_SCALE:
    render_scale.options.add_item(scale_text)

  render_mode.options.clear()
  for scale_text in RENDER_MODE:
    render_mode.options.add_item(scale_text)

  _load_graphics_settings()

set_graphics_values() sets the initial values for the graphics settings based on the current configuration. It selects the appropriate options in the dropdowns and checkboxes according to the loaded settings.

func _set_graphics_values() -> void:
  resolution.options.select(max(RESOLUTIONS.values().find(DisplayServer.window_get_size()), 0))
  display_mode.options.select(DISPLAY_MODES.values().find(DisplayServer.window_get_mode()))
  borderless.set_pressed_no_signal(DisplayServer.window_get_flag(DisplayServer.WINDOW_FLAG_BORDERLESS))
  v_sync.options.select(V_SYNC.values().find(DisplayServer.window_get_vsync_mode()))
  fps.options.select(FPS.values().find(Engine.max_fps))
  msaa.options.select(MSAA.values().find(get_viewport().msaa_3d))
  fxaa.options.select(FXAA.values().find(get_viewport().screen_space_aa))
  taa.options.select(TAA.values().find(get_viewport().use_taa))
  render_scale.options.select(RENDER_SCALE.values().find(max(snappedf(get_viewport().scaling_3d_scale, 0.01), 0.5)))
  render_mode.options.select(RENDER_MODE.values().find(get_viewport().scaling_3d_mode))

restore_defaults() is called when the “Restore Defaults” button is pressed. It removes the configuration file if it exists and reloads the graphics items to reset the settings to their default values.

func _on_restore_defaults_button_up() -> void:
  if FileAccess.file_exists(config_path):
    DirAccess.remove_absolute(config_path)

  _load_graphics_items()

Technical Details

Graphics Pipeline Control

• Manages both window-level (resolution, mode) and rendering-level (AA, scaling) settings.
• Uses Godot’s DisplayServer for window configuration,
• Modifies Viewport settings for rendering quality,
• Controls Engine parameters for performance tuning,

Anti-Aliasing Options

• MSAA: Multisample anti-aliasing, high quality but performance intensive.
• FXAA: Fast approximate anti-aliasing, blurs entire image.
• TAA: Temporal anti-aliasing, smooths out everything but can introduce ghosting artifacts and blurring in motion.

Performance Scaling

• Includes FSR (FidelityFX Super Resolution) options for upscaling.
• Provides multiple render scale presets for performance tuning.
• Allows framerate limiting to control performance and power consumption.

Configuration Persistence

Settings are stored in a configuration file (user://settings.cfg) using the ConfigFile class. The stored values are:

• Section: “graphics”
• Keys: Graphics setting names (e.g., “resolution”, “display_mode”, “v_sync”, “render_scale”)
• Values: Corresponding configuration values for each setting This allows the game to remember user preferences across sessions.

Dependencies

• SettingsManager: For loading and saving settings.
• DisplayUtils: For centering the window.
• ContentItemDropdown: Custom dropdown UI element.
• SettingsCheckButton: Custom checkbox UI element.

Usage

To use the GraphicsSettingsPanel, you need to add it to the settings menu as a PackedScene (see SettingsMenu). The panel will automatically load the current graphics settings and allow users to adjust them using the dropdowns and checkboxes. When the user changes a setting, the new value is saved to the configuration file.
